MeshCore

We love MeshCore and operate a neighborhood repeater as well as a general purpose LoRa testbed (currently down).

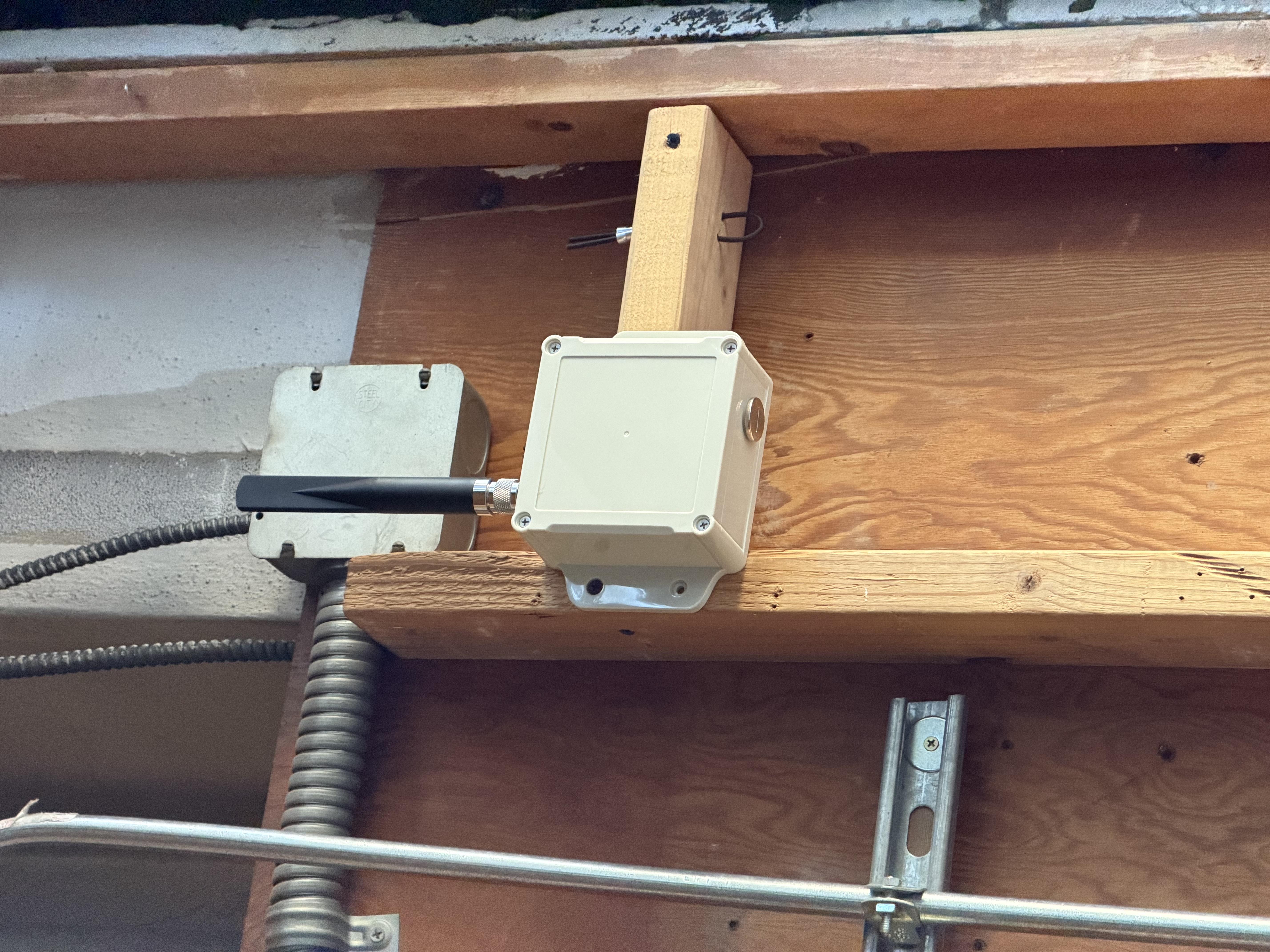

Repeater

Name: dma.space

Public key (ID): dadadadab490faf2f989f08bb7d627f3aabb165607124a28307885297b5eb7b0

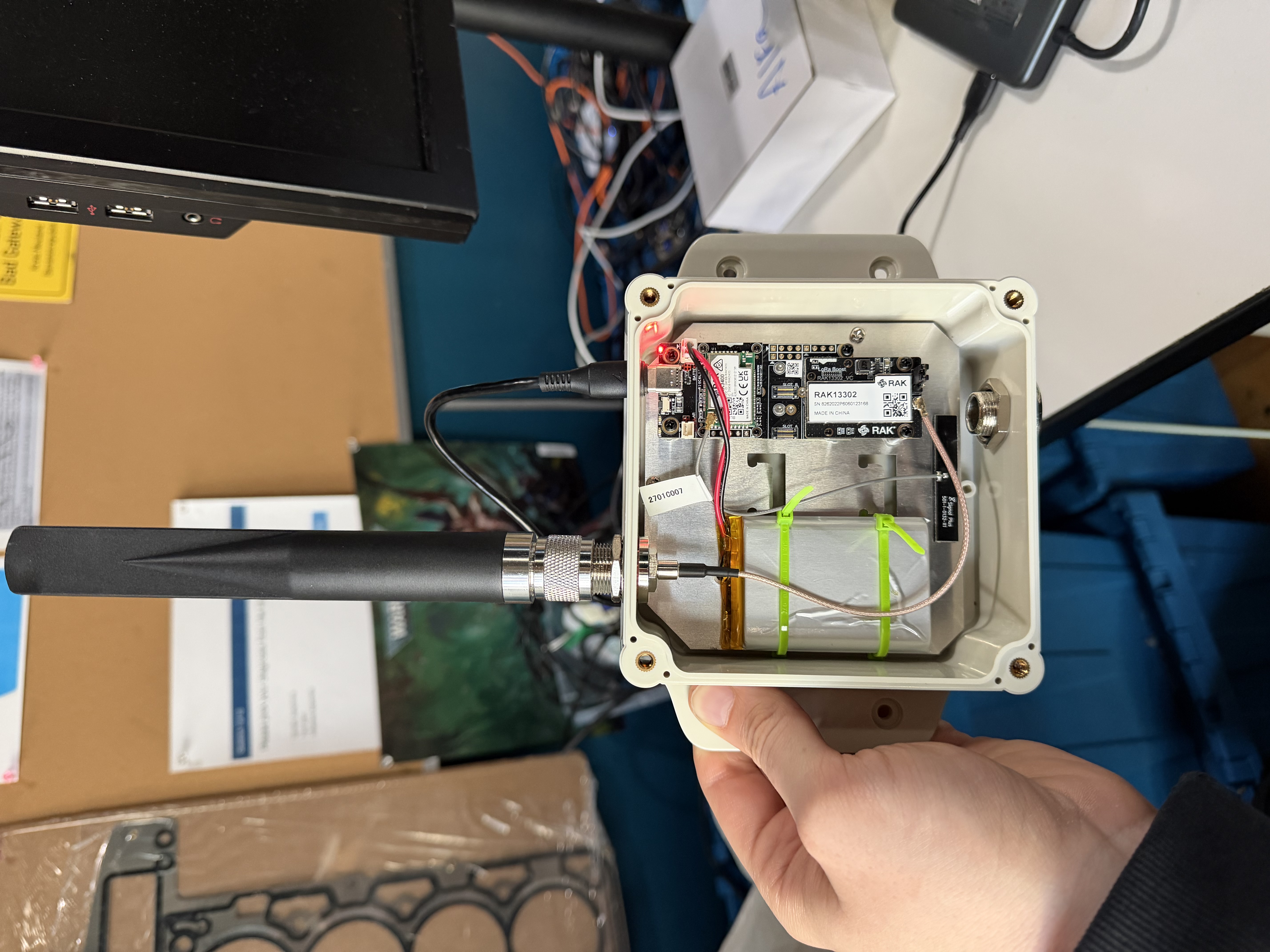

Hardware

• RAK3401 WisBlock Core
  • Nordic nRF52840 MCU
  • RAK13302 1W LoRa radio
  • RAK19007 Base Board
• ALFA networks 5dBi antenna
• RAKBox-B4 enclosure
• 3300 mAh battery for backup
• Monoprice 5V 1A (USB) power supply

Room Server

Name: dma.space/mesh/room

Public key (ID): c682fcb75dde6c2527287168974d31da7f37de2143b0bd73237faf74be4dc9ad

Password: space.dma

Currently a Heltec v3 on the member rack. Probably not very reachable outside DMA?

LoRa Testbed

🚧 Currently offline pending a rebuild.

The LoRa testbed contains 4x ESP32 Xiao Wio a Raspberry Pi and an RTL-SDR. Power over Ethernet powers the system, there is no backup power supply built-in to the system.

Remote Access

TBD. We'll likely develop a web service for deploying firmware & debugging the LoRa nodes remotely.

Stay tuned for updates.

Hardware

TBD.

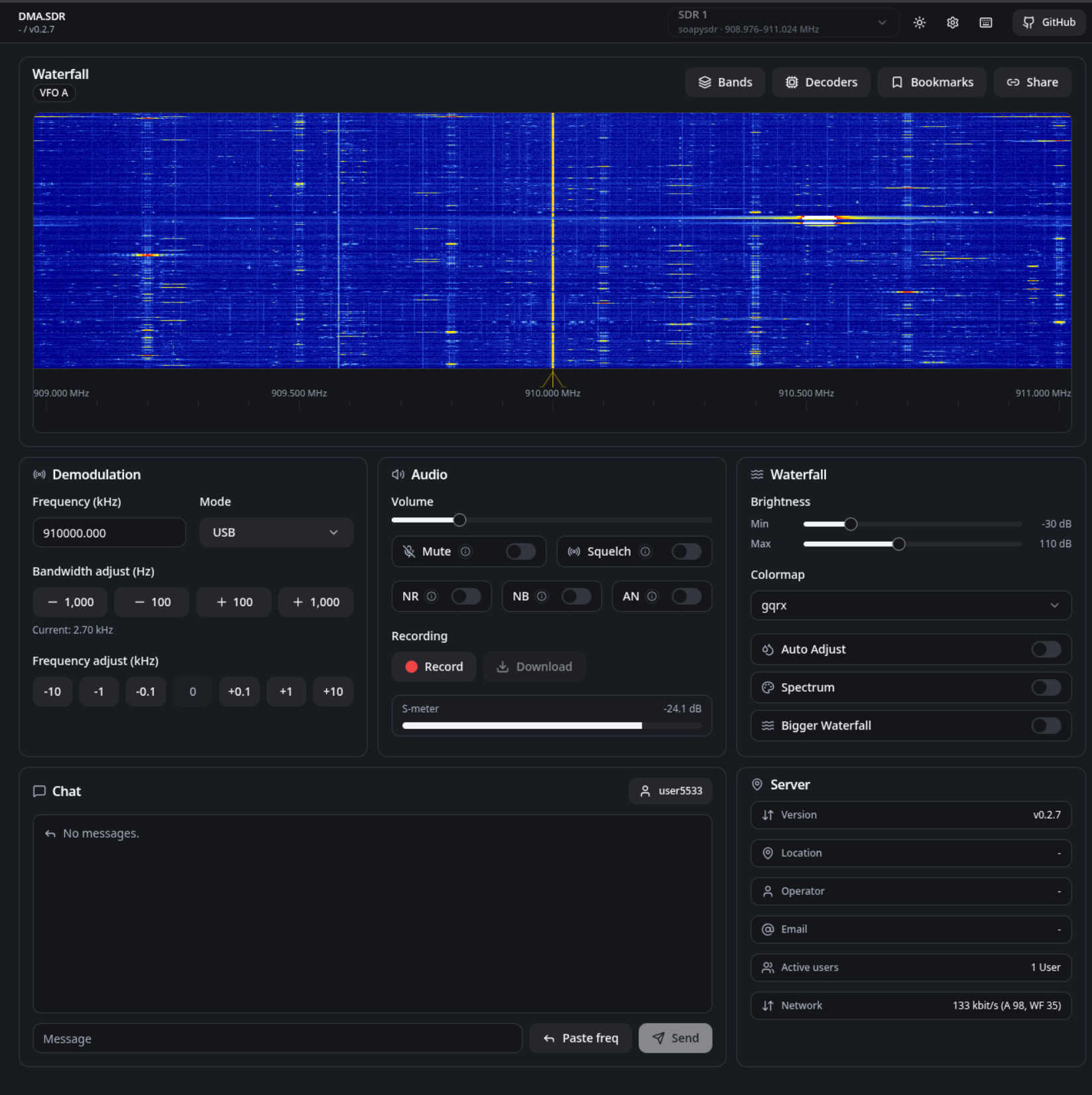

Web SDR

🚧 Currently offline pending a rebuild.

• https://sdr.dma.space

We operate a web accessible SDR service which enables members of the mesh community to rapidly debug the RF conditions in the local mesh.
